Nice to know: Mitsubishi Evo 4 5 6 gauge clusters
Ich habe festgestellt, dass in den sozialen Medien viel Unwissenheit über die Tachos der CN/-CP9A Evos herrscht. Es wird auch viel Falsches behauptet.
Ich möchte mit diesem Artikel einmal zeigen welche Tachos tatsächlich produziert worden und woran man Nachbauten erkennt.
OEM production
JDM EVO IV
Many people say about the speedos that they are white. But they are actually silver with orange/red scale. The printed part number is: MR298135
Speedometer scale: 180 kph
Tachometer scale: 9.000 rpm
JDM EVO V

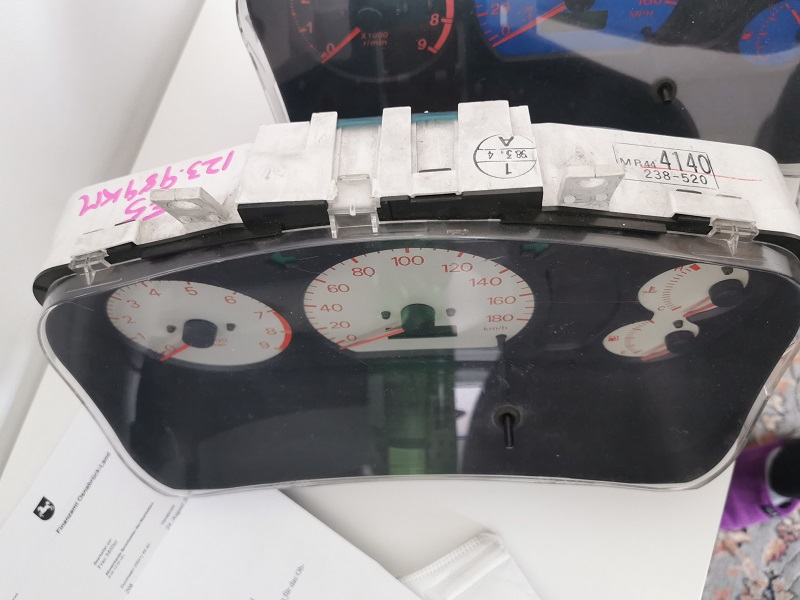

At first glance it looks like an EVO 4 speedometer. However, the difference can be seen on the speedometer scale. The thick lines on the Evo 4 are trapezoidal and rectangular on the Evo 5. The electrical circuit of the speedometer board is different from the Evo 4.. The printed part number is: MR444140
Speedometer scale: 180 kph
Tachometer scale: 9.000 rpm

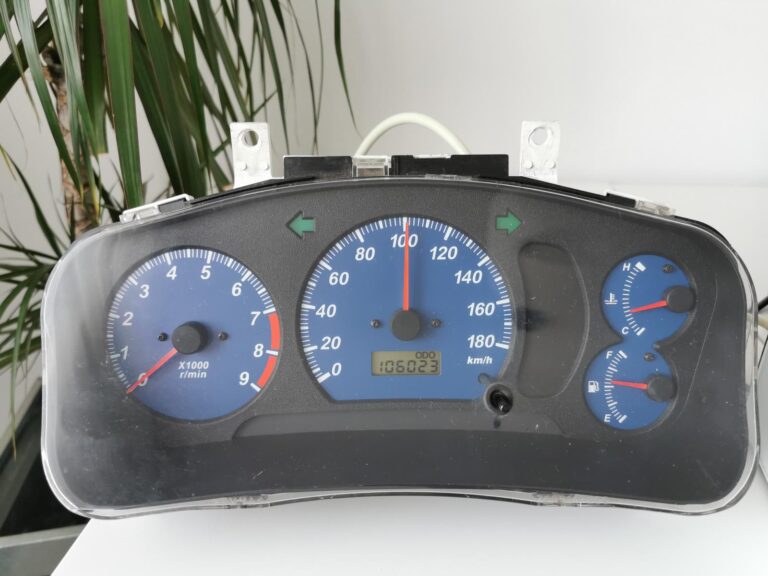

JDM EVO VI

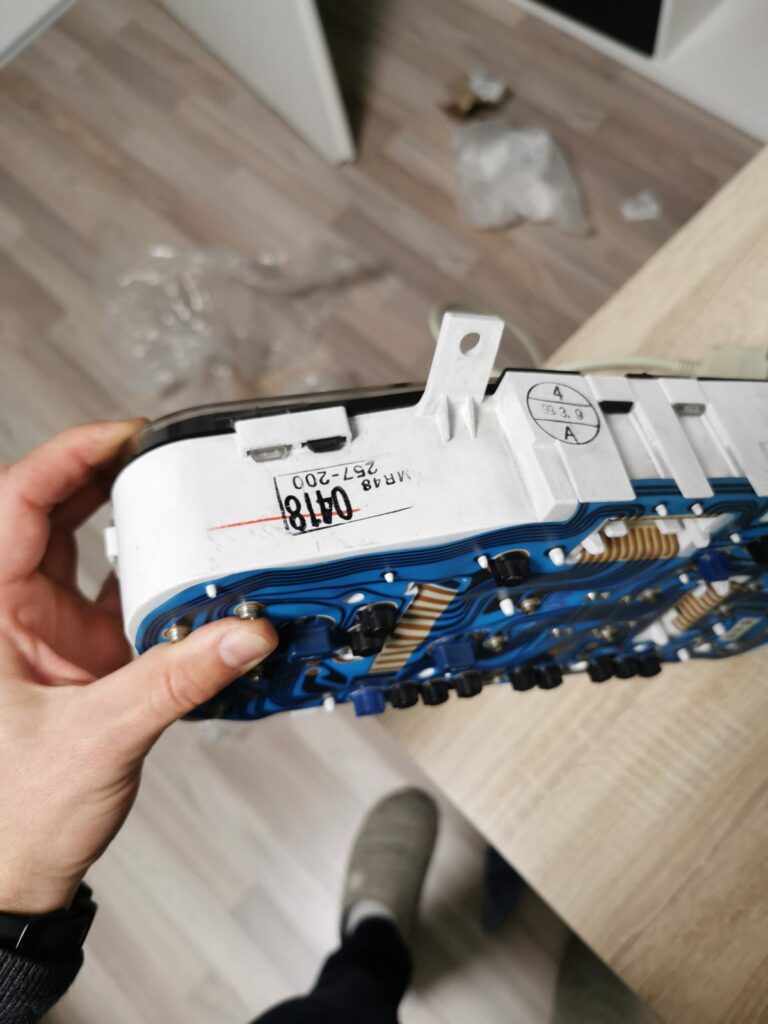

The Evo 6’s instrument cluster is characterised by the blue speedometer dials. There are no technical differences to the Evo 5, but different bulbs are used for the lighting (Evo 6 blue caps / Evo 4/5 white caps). The printed part number is: MR480418
Speedometer scale: 180 kph
Tachometer scale: 9.000 rpm
JDM EVO VI Tommi Mäkinen Edition
The Evo 6 TME’s instrument cluster is characterised by the black speedometer dials with orange scale. The printed part number is: MR532771
Speedometer scale: 180 kph
Tachometer scale: 9.000 rpm

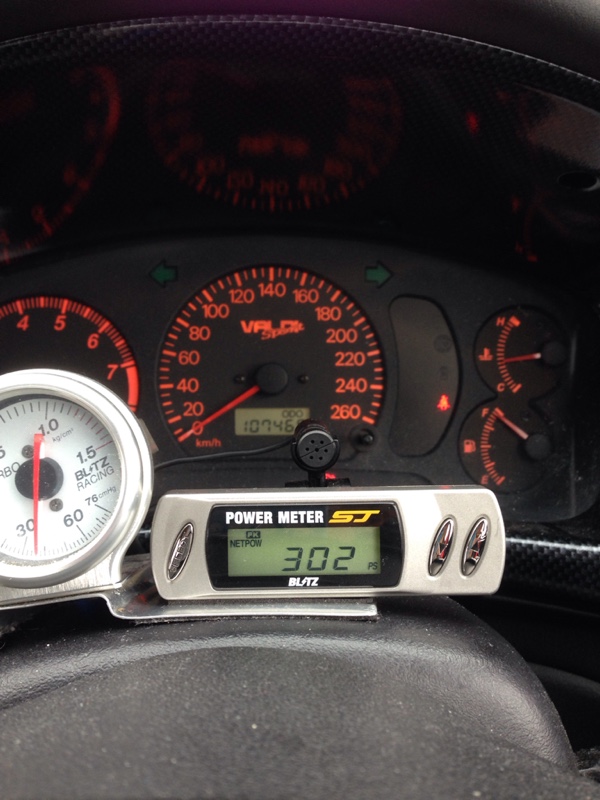

EDM EVO VI Tommi Mäkinen Edition
The EDM Evo 6 TME’s instrument cluster is characterised by the black speedometer dials with orange scale up to 260 kph with additional mph scale an. The printed part number is: MR559537
Speedometer scale: 260 kph / 160 mph
Tachometer scale: 9.000 rpm
EDM EVO VI RS-2
The EDM Evo 6 RS-2’s instrument cluster is characterised by the black speedometer dials with white scale up to 260 kph. The font is non-italic. The printed part number is: ??
Speedometer scale: 260 kph
Tachometer scale: 9.000 rpm
Famous tuners

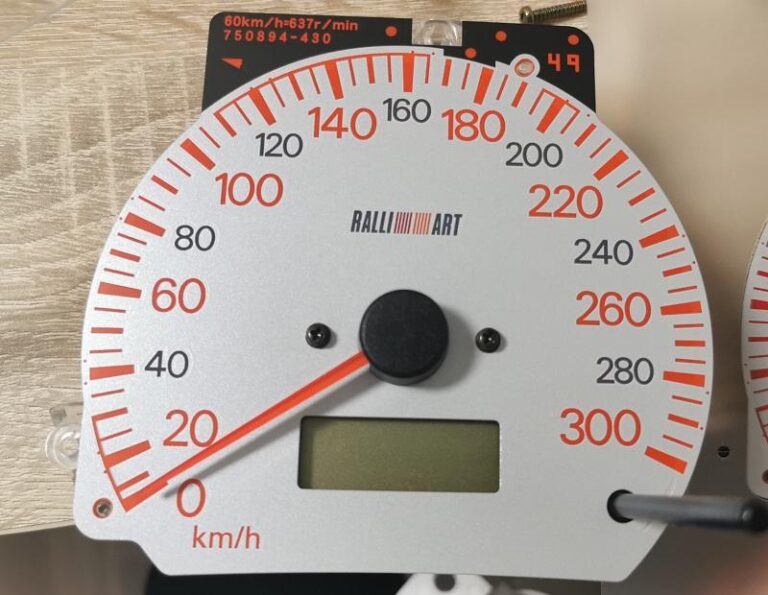

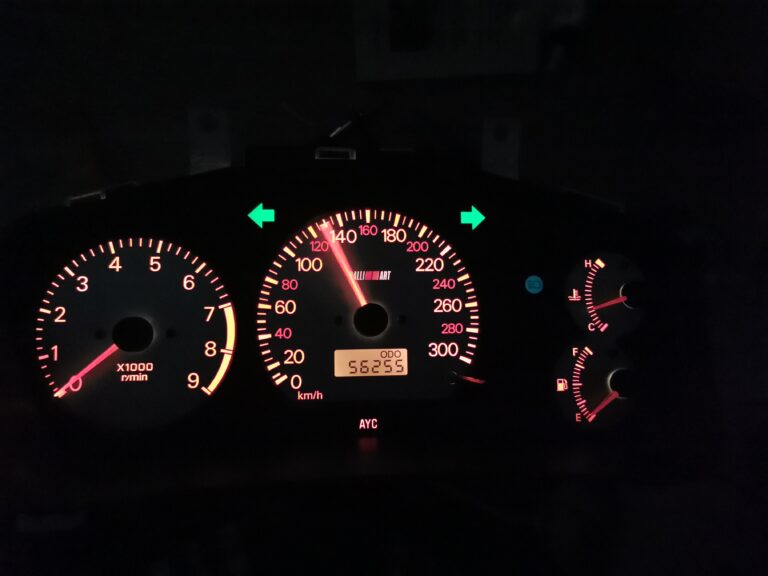

Ralliart speedometer unit

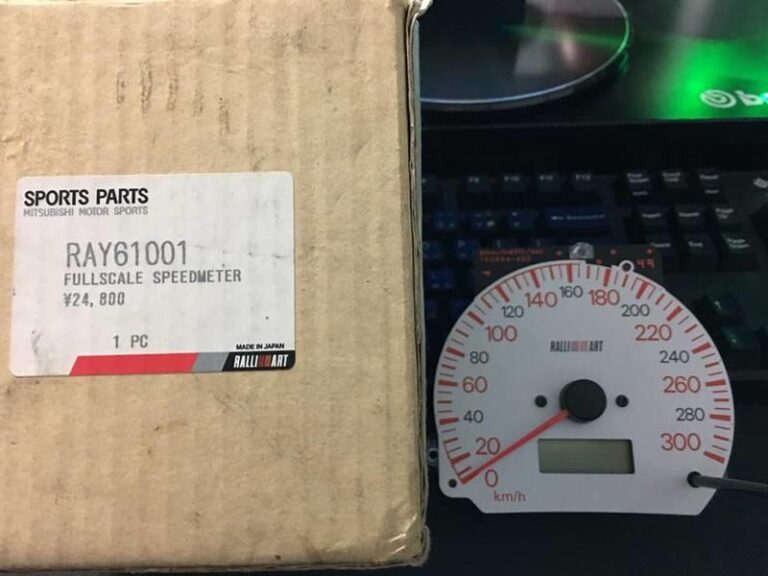

To be clear, there was no production of a complete RalliArt gauge cluster. You could only buy the speeometer itself. The dial is silver like the EVO 4/5 dials with orange/red and grey numbers. The part number is: RAY61001
Speedometer scale: 300 kph

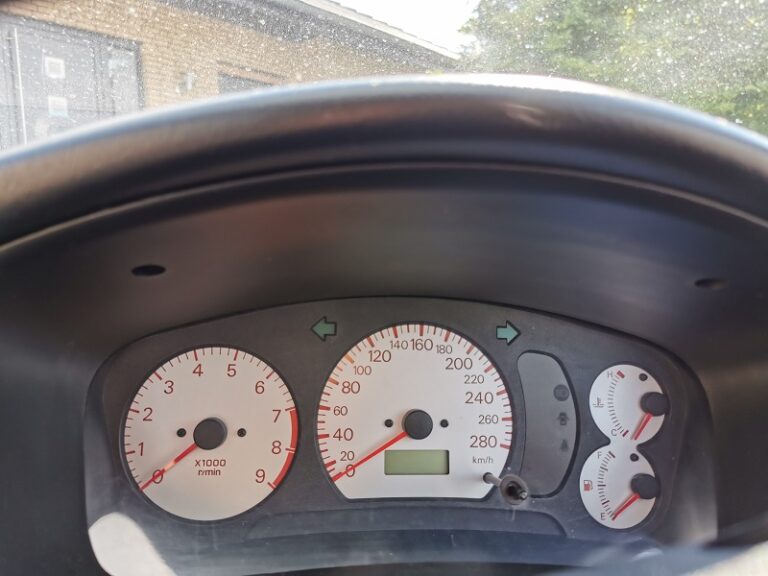

Mines speedometer unit
Super rare but beautiful. Mines built three variants:
– silver-red for Evo 4/5
– blue white for Evo 6
– black-orange for Evo 6 TME
Speedometer scale: 280 kph
